VR1E, 1HP 1PH Motor - Change internal wiring from 220 volt to 110 volt

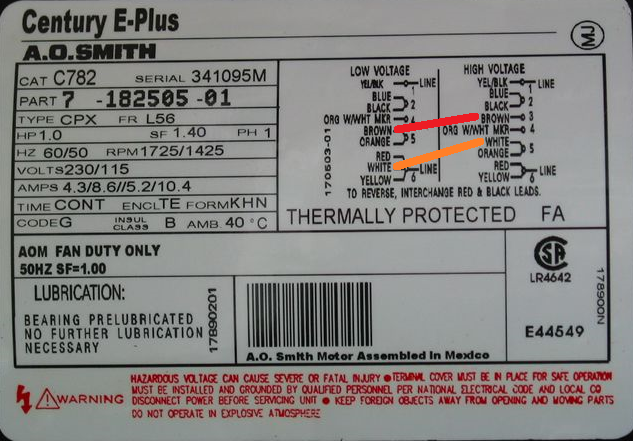

Move the internal "White" wire from terminal 5 to 6 (Orange Line) and the internal "Brown" wire from terminal 3 to 5 (Red Line).
